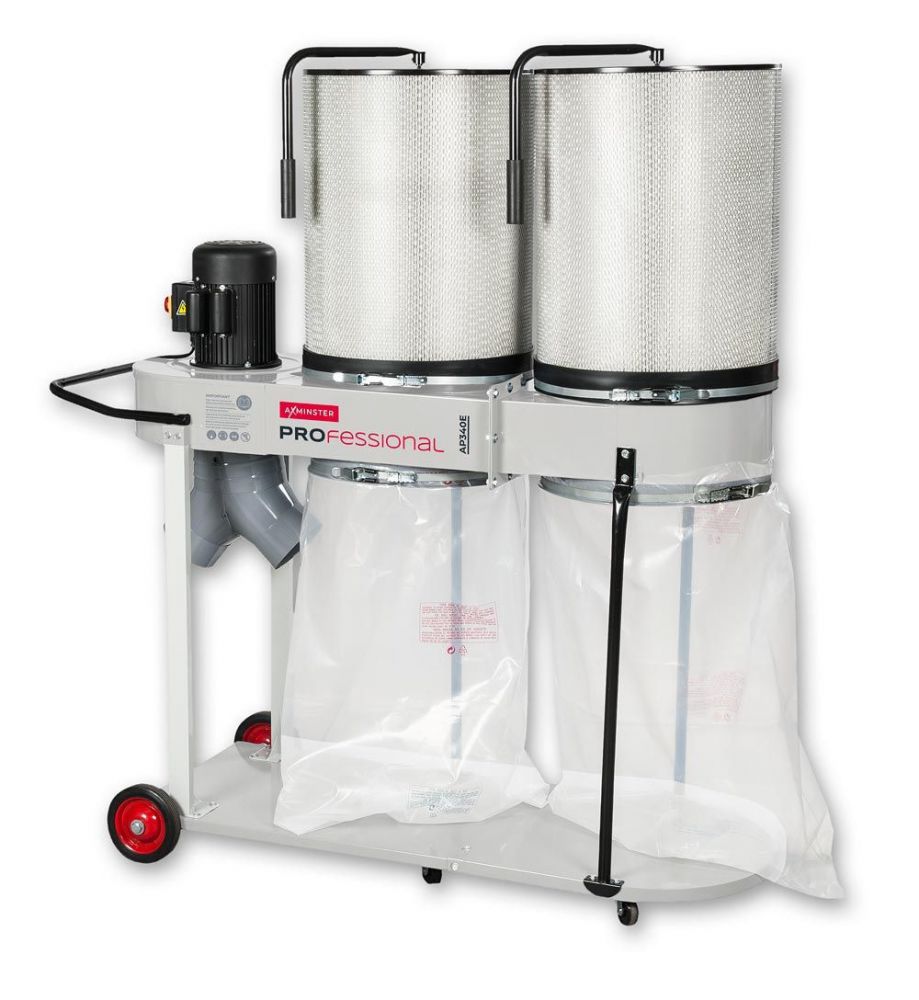

Axminster Professional AP340E Double / Twin Bag Dust Extractor 3HP 230V

Axminster Professional AP340E Double / Twin Bag Dust Extractor 3HP 230V

ref: 107634

• The AP340E dust extractor features a thoroughly modern design and twin cartridge filters. High performance comes from careful matching of the motor, impeller and housing. The result is a quietly efficient and powerful machine able to extract from almost all machinery found in a typical large workshop.
• It has a single 200mm inlet and includes a twin 150mm adaptor. The 500mm diameter, 600mm high cartridge filters have a rating of 1 micron @ 100% capture rate. The cartridge filters increase the potential use of this machine to include sanders as well as the normal range of saws, planers etc. Being polyester the filters are easy to keep clean with the top mounted crank handles. With a large filter surface area of 3.6m² the general airflow is not reduced. A comfortable tubular handle, steel rear wheels and two pairs of castor wheels provide easy mobility. Large capacity plastic waste sacks and quick release straps are included.
• Overall, a fine, modern extractor for any trade workshop.
• Hose not supplied.
• N.B. This Machine requires a 16amp supply and it's recommended that a C Type breaker is used, if you are unsure please contact a qualified electrician.

• Airflow: 1,600 m³/hr @ 150 mm / 3,000 m³/hr @ 200 mm
• Bag Capacity: 2 x 170 litre
• Filter Performance: 100% >1 micron
• Hose Diameter: 1 x 200 mm or 2 x 150 mm
• Model: AP340E
• Nett Weight: 74 kg
• Overall L x W x H: 1,620 mm x 680 mm x 1,770 mm
• Plug Fitted: UK 16A Plug
• Power: 2.2 kW
• Rating: Trade/Professional
• Sound Pressure Level LpA [Uncertainty K]: 75 dB(A) [1.5 dB]
• Static Pressure: 2,575 Pa
• Voltage: 230 V
