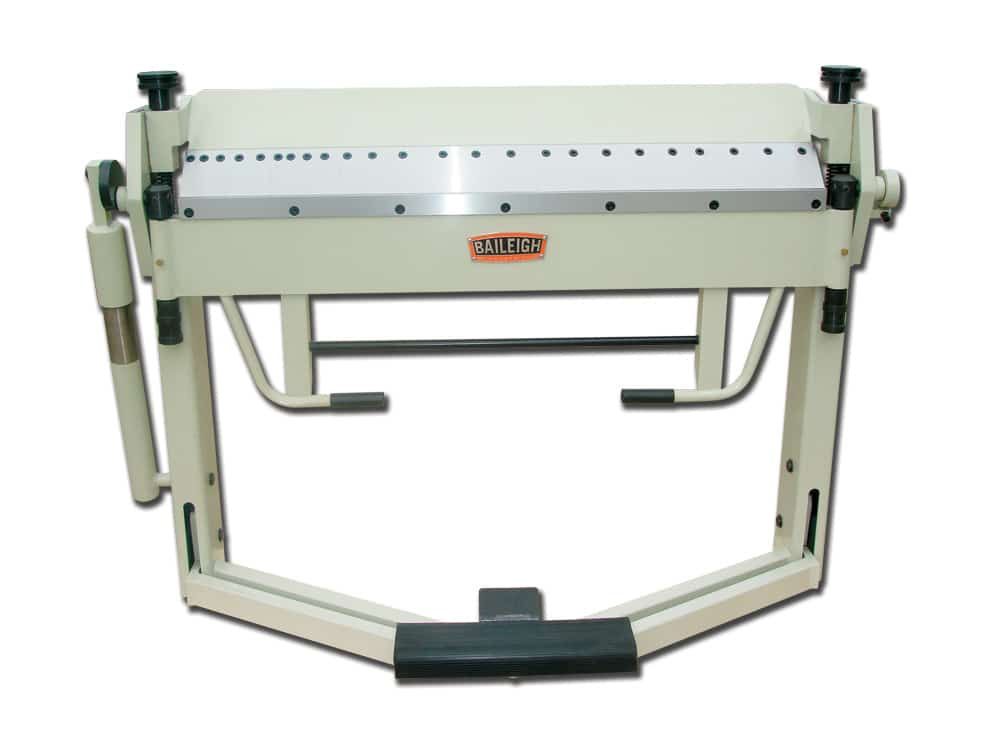

Baileigh BB-5014F Box and Pan Folder 1270mm

Baileigh BB-5014F Box and Pan Folder 1270mm

Doing a full width sheet metal bend on a standard box and pan brake can be difficult if you are by yourself, ever wish you had an extra hand to help. Baileigh Industrial's BB-5014F finger brake allows the operator to clamp the material with his/her foot, so both hands are free for perfect positioning of the sheet metal before clamping the material in place.

• The BB-5014F finger brake model comes with an assortment of different width fingers to accommodate bending various sizes and shapes of tanks, pans, boxes and much more.
• Also included with the BB-5014F is an easy to adjust gap adjustment for various gauges of sheet metal.
• A spring loaded cylinder assists lifting the apron which gives assistance to the operator when bending at full capacity, which is an impressive 14 gauge at a full 50 inches.

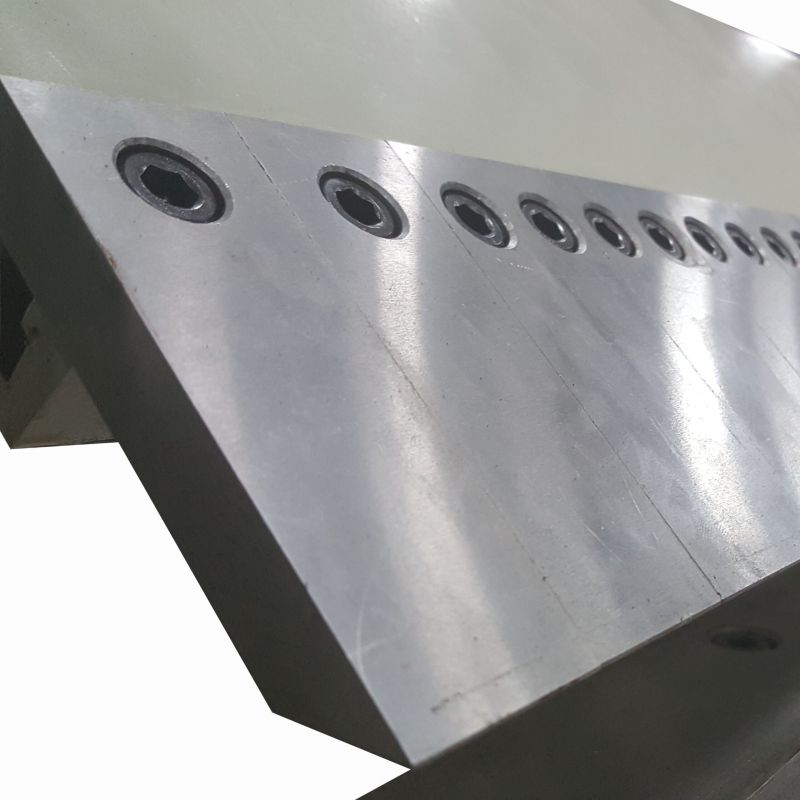

• The BB-5014F sheet metal brake also features hardened fingers and bending die for long life and years for use.
• An adjustable stop rod completes the list of features for the BB-5014F.
• 2mm mild capacity
• 1.3mm stainless capacity
• 1270mm folder length
• 0° – 135° bend angle

• Item Number BB-5014F
• Thickness (SS) 14 ga. (18 ga.)
• Box Depth 64 mm
• Max. Clamping Bar Lift Foot Operated 47 mm
• Shipping Weight 364 kgs.
• Length 1270 mm
• Shipping Dimensions (Inches) 1702 x 711 x 1207 mm
