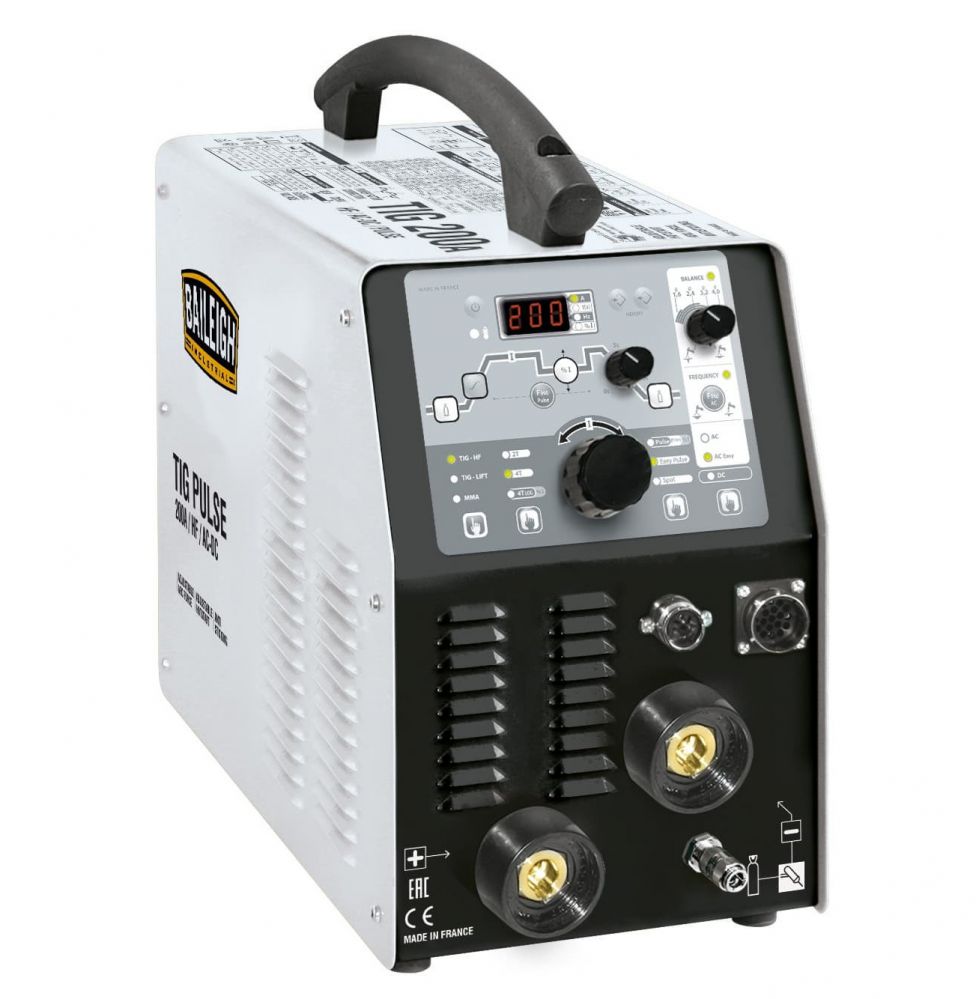

Baileigh BW-200T-200A TIG Welder

Baileigh BW-200T-200A TIG Welder

• Standard Tig Mode - Constant DC current.
• AC mode - specific for welding Aluminium.
• Balance - setting of the cleaning and penetration based on tungsten size.
• Easy Pulse - preset pulse frequency dependent on the current.
• Pulsed Tig Mode :- Ideal for thin gauge materials.
• Trigger modes - 2T and 4T ( hold or latched trigger ).
• Pre Gas - gas flow before you begin to weld ( in seconds).
• Up slope - control the increasing current from the start of the weld.
• Pulse Frequency - set the frequency of the pulses per second.
• Down Slope - control of the reducing current at the end of the weld.
• Post gas - flow of gas at the end of the weld to reduce cracking.
• Memory function - Store 5 preset jobs within the machine.
• MMA mode - stick electrode welding.
• SR26 4mtr Tig torch.
• 2 metre Electrode holder.
• 2 metre Earth cable.
• Consumables starter kit.
• 200 AC/DC HF Welder
• Standard tig mode
• AC mode
• 2 year warranty as standard

• BW-200T-200A TIG 200 AC/DC HF WELDER
• Supply Voltage 240V
• Fuse Protection 16A
• Electrode Capacity 1.6 – 5.0mm
• OCV Operating Circuit Voltage 70
• Amperage 10 – 200 A
• Dimensions 20 x 18.5 x 12.5 520 x 470 x 320mm
• Weight 41lbs.18.5kgs.
• Generator Compatible 7.5KVA
