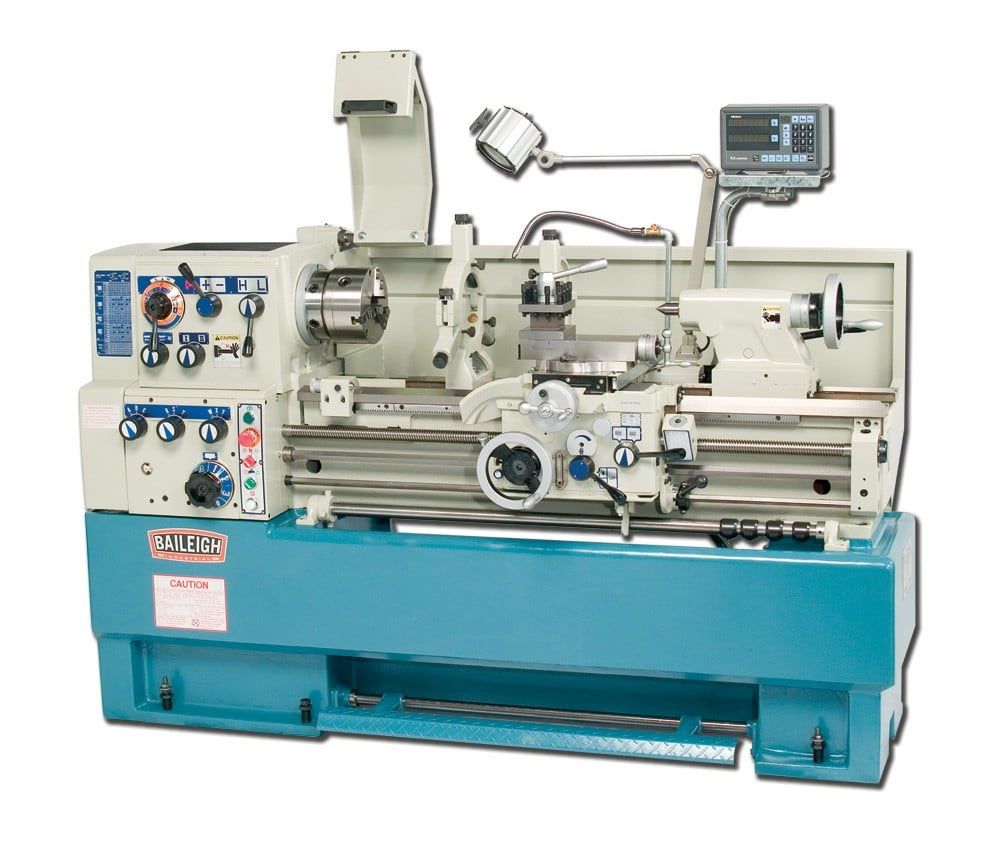

The PL-1640 metal working lathe is the perfect combination of size and power.

• This precision lathe features a 16 swing and 40 between centres and has features that will allow your shop to grow for years.
• The PL-1640 is built to Baileigh industrial's high standards and has everything that a machine shop could want.
• The PL-1640 has a full cast iron base that is integrated into the main frame of the lathe, making this one of the most rigid lathes on the market.
• It is powered by a 7.5hp motor and can turn between 30 to 2000rpm through its 12 speeds.
• The PL-1640 metal working lathe is built to withstand years of use in any metal working shop with its precision ground and hardened ways.
• The PL-1640 comes with a factory installed Mitutoyo DRO (digital read-out) for making precise cuts, halogen light, a three jaw chuck, steady rest and follow rest. All this in one complete package.
• Distance between centres 1016mm
• 16" (407mm) swing over bed
• 8" three jaw chuck
• 4-way quick change tool post

• Item Number PL-1640
• Country of Manufacture Taiwan
• Speed Range 31  2000 rpm
• Speed Number 13
• Spindle Bore 52 mm
• Motor 7.5 hp
• Threads Diametrical Qty Speed 33 / 4 32 D.P.
• Threads Imperial Qty Speed 41 / 2 56 T.P.I.
• Threads Metric Qty Speed 54 / .4 14 mm pitch
• Threads Module Qty Speed 45 / .4 7 M.P.
• Spindle Taper Sleeve Morse #4
• Spindle Taper Nose Morse #6
• Tailstock Quill Dia 54 mm
• Tailstock Quill Taper Morse #5
• Tailstock Quill Travel 120 mm
• Compound Rest Width 110 mm
• Center Length 1016 mm
• Center Height 180 mm
• Compound Travel 120 mm
• Bed Height 310 mm
• Bed Length 17173
• Bed Width 300 mm
• Longitudinal Feeds Metric Qty Speed 41 / .032  .640 mm / rev.
• Longitudinal Feeds Imperial Qty Speed 41 / .0012″  .0252″ / rev.
• Lead Screw Diameter 32 mm
• Max. Swing In Gap Length 155 mm
• Max. Swing Over Bed 407 mm
• Max. Swing Over Cross Slide 240 mm
• Max. Swing In Gap Dia 595 mm
• Motor Coolant 1/8 hp
• Cross Feeds Imperial Qty Speed 41 / .0006″  .0126″ / rev.
• Cross Feeds Metric Qty Speed 41 / .015  .320 mm / rev.
• Cross Slide Travel 230 mm
• Cross Slide Width 180 mm
• Cutting Tool Max Section 16 mm x 16 mm
• Feed Rod 18 mm
• Power 400 volt three phase
• Shipping Weight 2000 kgs.
• Shipping Dimensions (Inches) 2311 x 1651 x 1118 mm
