Baileigh PL-1860 Precision Metalworking Lathe 400v

Baileigh PL-1860 Precision Metalworking Lathe 400v

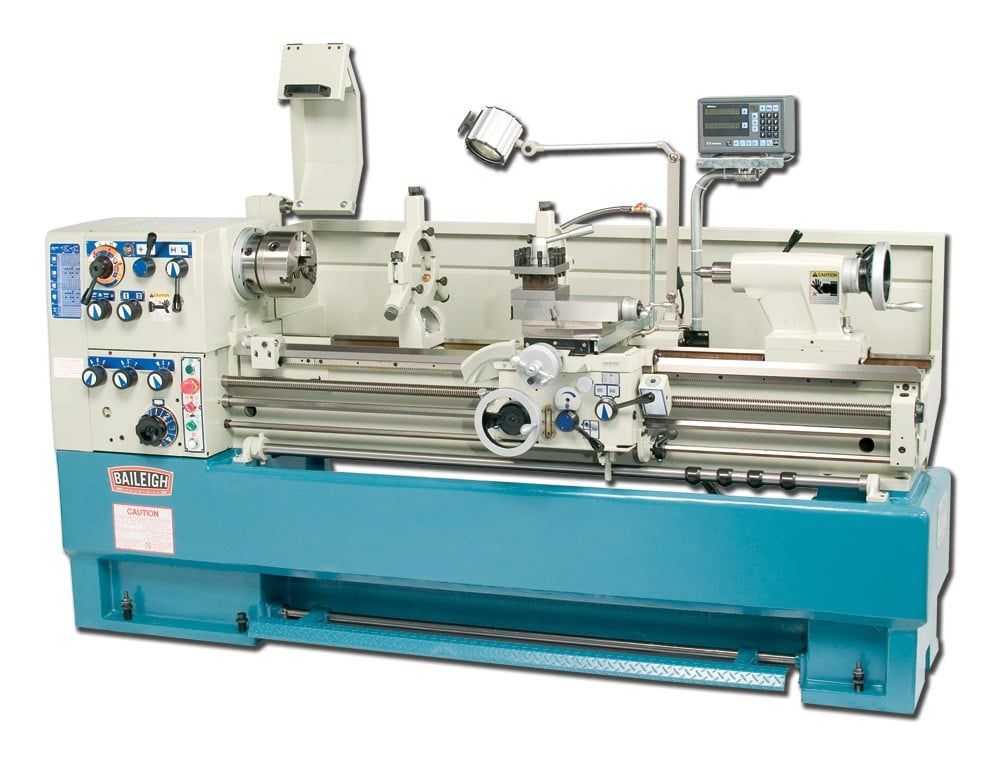

The Baileigh Industrial PL-1860 lathe is a great investment that out performs other lathes in its class. It is affordable, rugged, reliable and easy to operate.

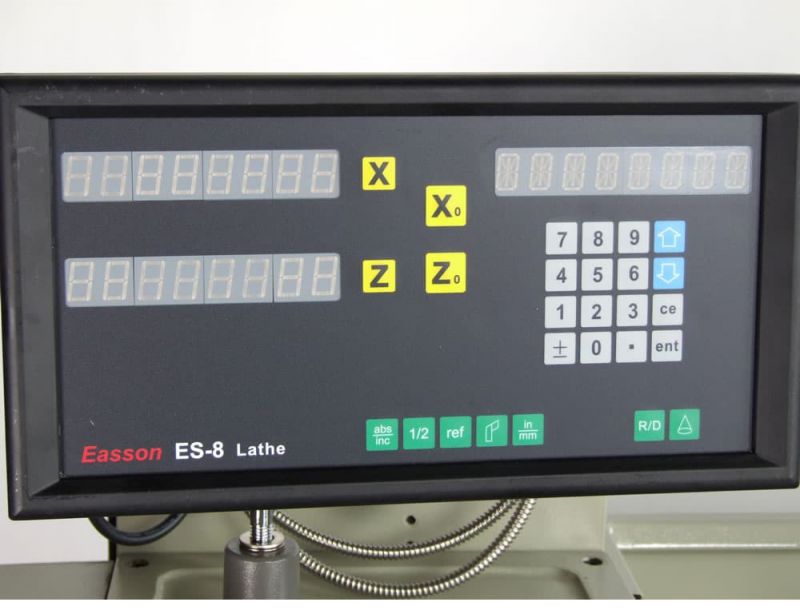

• The PL-1860 includes a vast array of features and accessories as standard equipment. Things like the Mitutoyo 2 axis digital readout system, 8" 3-jaw universal chuck, 8" back plate, coolant system, steady rest, follow rest, headstock chuck-guard with microswitch, micrometer saddle stop, rear splash guard, and halogen worklight are all included.
• Constructed from 100% cast iron, the PL-1860 engine lathe is built to last and is known for consistent performance and durability even under the most demanding work conditions.
• Precision ground and hardened ways on the PL-1860 are further protected by a Turcite-B coating, which offers years of protection to the ways when under the most grueling turning conditions.
• The PL-1860 gear head lathe has 12 different speed combinations allowing for speeds between 80 and 2000rpm.
• A powerful 7.5hp motor allows for heavy cuts to be shaved off of the turned part. This allows for better turned surfaces, faster production, and longer tooling life.
• Distance between centres 1524mm
• 18" (458mm) swing over bed
• 8" three jaw chuck
• 4-way quick change tool post

• Item Number PL-1860
• Country of Manufacture Taiwan
• Speed Range 31  2000 rpm
• Speed Number 13
• Spindle Bore 60 mm
• Motor 7.5 hp
• Threads Diametrical Qty Speed 33 / 4 32 D.P.
• Threads Imperial Qty Speed 41 / 2 56 T.P.I.
• Threads Metric Qty Speed 54 / .4 14 mm pitch
• Threads Module Qty Speed 45 / .4 7 M.P.
• Spindle Taper Sleeve Morse #4
• Spindle Taper Nose Morse #6
• Tailstock Quill Dia 54 mm
• Tailstock Quill Taper Morse #5
• Tailstock Quill Travel 120 mm
• Compound Rest Width 125 mm
• Center Length 1524 mm
• Center Height 230 mm
• Compound Travel 135 mm
• Bed Height 310 mm
• Bed Length 17173
• Bed Width 300 mm
• Longitudinal Feeds Metric Qty Speed 41 / .032   .640 mm / rev.
• Longitudinal Feeds Imperial Qty Speed 41 / .0012″   .0252″ / rev.
• Lead Screw Diameter 32 mm
• Max. Swing In Gap Length 155 mm
• Max. Swing Over Bed 458 mm
• Max. Swing Over Cross Slide 288 mm
• Max. Swing In Gap Dia 640 mm
• Motor Coolant 1/8 hp
• Cross Feeds Imperial Qty Speed 41 / .0006″  .0126″ / rev.
• Cross Feeds Metric Qty Speed 41 / .015  .320 mm / rev.
• Cross Slide Travel 230 mm
• Cross Slide Width 180 mm
• Cutting Tool Max Section 16 mm x 16 mm
• Feed Rod 18 mm
• Power 400 volt three phase
• Shipping Weight 2300 kgs.
• Shipping Dimensions (Inches) 2845 x 1651 x 1118 mm
