Baileigh RD-1600H Hydraulic Radial Drill 400v
Product Code: BAI/RD-1600H
Brand: Baileigh
Low Stock - Contact Us For Availability
£27,189.60 Inc. VAT
£22,658.00 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities

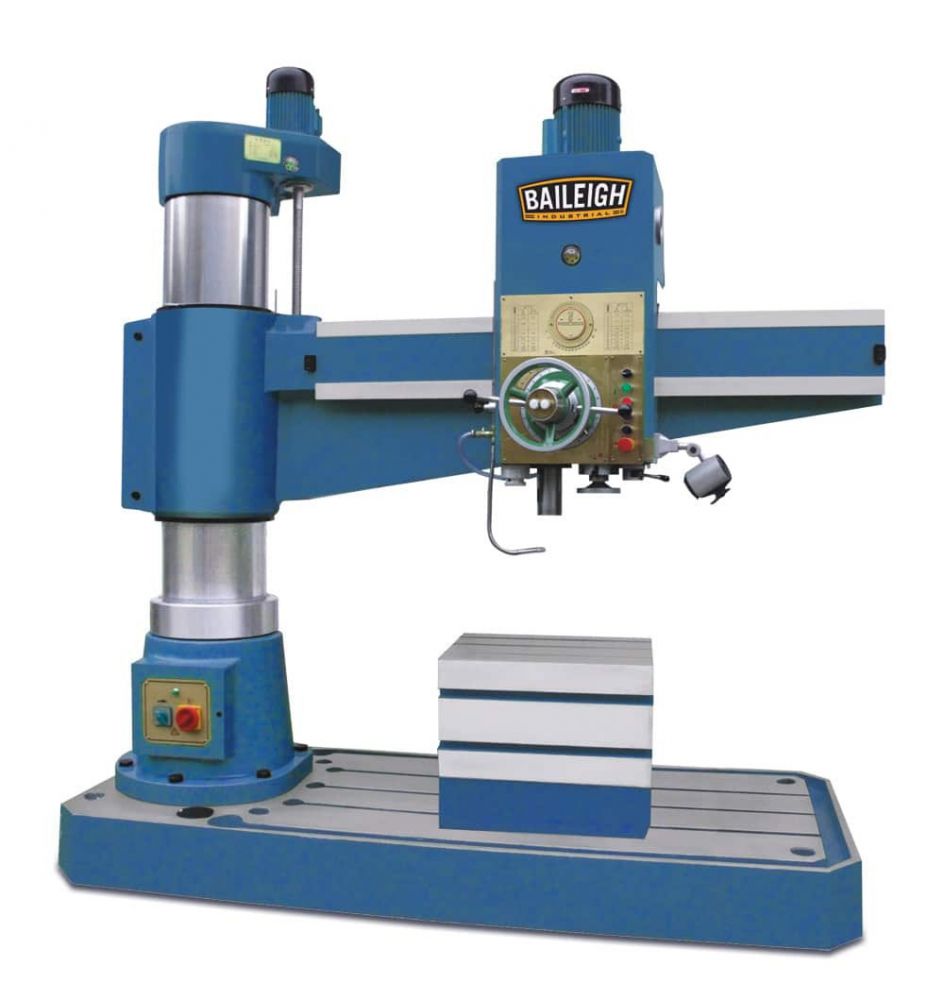

Baileigh RD-1600H Hydraulic Radial Drill 400v
Key Features
- 2" maximum drilling capacity
- Heavy-duty construction
- Power downfeed
- MT5 spindle
- Large 63" column
- 5.25hp motor
- 400 volt, three phase
- Includes spindle protection cover, quick chuck, tapping chuck, industrial coolant system, worklight, and box-shaped worktable.
- Variable speeds: 25 to 2000 rpm
Technical details
- Item Number RD-1600H
- Max. Drill Capacity 2″
- Distance from Spindle to Column Center 13.7″ to 63″
- Diameter of Column 13.7″
- Spindle Taper MT5
- Spindle Travel 12.4″
- Spindle Speed Range 25 to 2000 rpm
- Range of Spindle Feeds .001″ to .125″
- Spindle Feeds 16
- Distance Between Spindle Nose and Base 12.6″ to 48″
- Table Size 24.8″ x 19.6″ x 19.6″
- Base Size 94.4″ x 39.3″ x 7.8
- Overall Size 98″ x 40″ – 96″ x 103″ – 112″ (accounting for beam movements)
- Motor 5.25 hp
- Power 220V 3-phase
- Shipping Weight 9,460 lbs.
- Shipping Dimensions 102″ x 44″ x 100″
