Draper Expert Hydraulic Floor Press, 30 Tonne - 70561
Product Code: DRA/70561
Brand: Draper Expert
In Offsite Stock - Delivery in 4 to 5 Days
£1,758.00 Inc. VAT
£1,465.00 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities

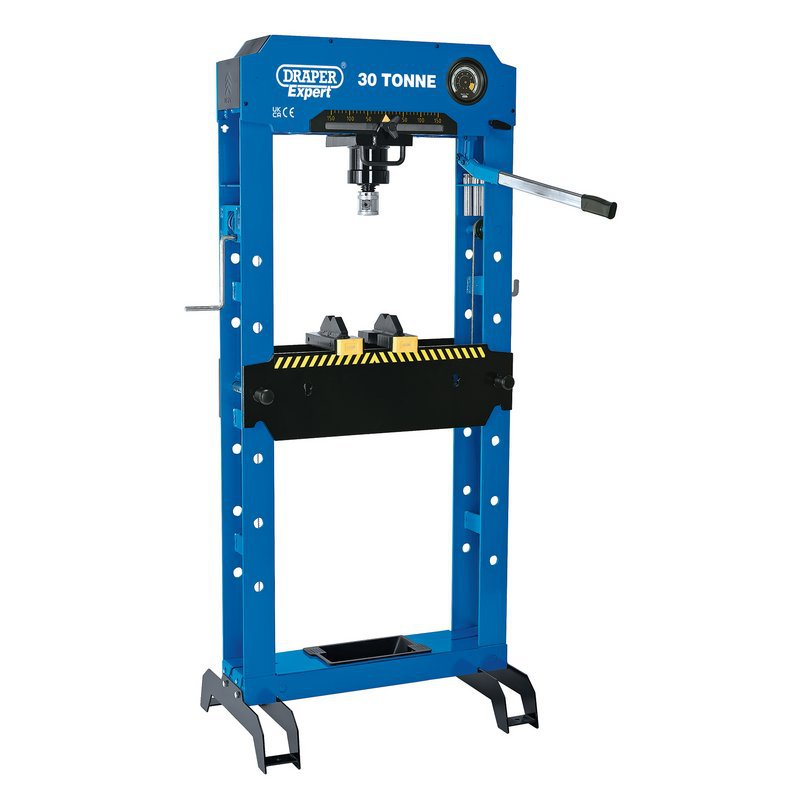

Draper Expert Hydraulic Floor Press, 30 Tonne
ref: 70561 / HFP/30
Key Features
- Robust hydraulic 30 tonne floor press with sliding ram for precise pressing.
- Fitted with hand pump for manual hydraulic operation.
- There are 12 adjustable table heights with a working range between 25-850mm.
- The table can be lifted or lowered using a winch.
- Robot welding one-piece frame for increased stability.
- There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life.
- There is a removable parts tray located in the frame base.
- Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.
Specification
- Capacity: 30 Tonne
- Gauge diameter: 100mm
- Ram stroke: 220mm
- Ram scale: 145mm - 0mm - 145mm
- Ram diameter: 50mm
- Table height: 25-850mm
- Press pin capacity: 2-15 Tonnes
- Overall height: 1800mm
- Frame dimensions: (H) 1685 x (W) 600 x (D) 148mm
- Weight (net): 157kg
