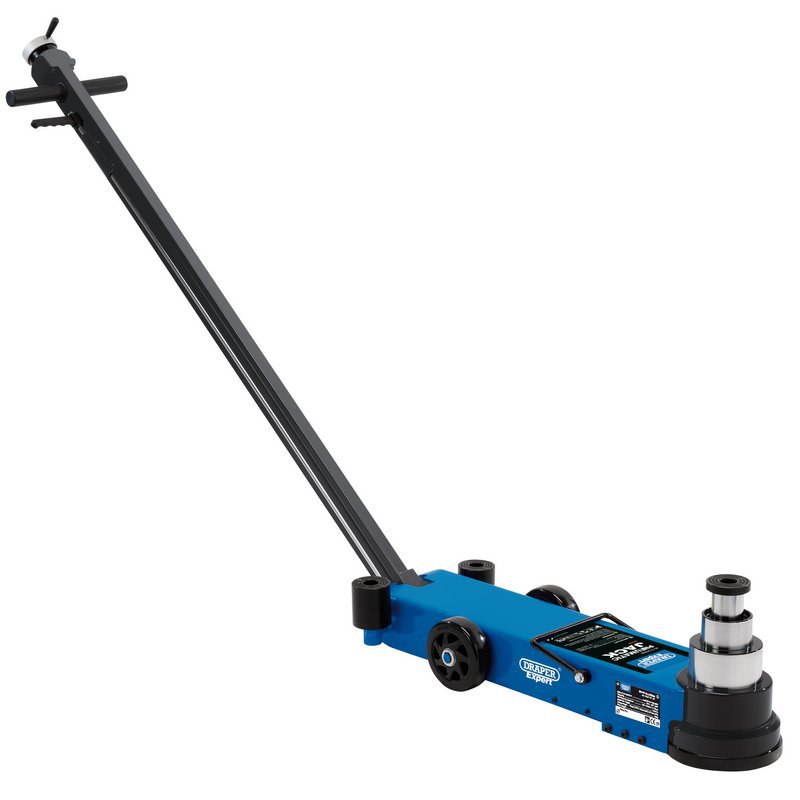

Draper Expert Pneumatic Long Chassis Low Profile Jack, 40 Tonne - 02080

Draper Expert Pneumatic Long Chassis Low Profile Jack, 40 Tonne

ref: 02080 / PJ40LC

• Long chassis, extra low profile pneumatic jack.
• The 125mm entry height has a total reach of 2210mm and is capable of lifting 40 Tonnes.
• The 3 stage adjustable ergonomic handle is fixed with a 'Slow Down' valve and a 'Self-Return' switch for increased safety and easy use.
• Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability.
• Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector.

• Capacity stage 1: 40 Tonne (40,000kg)
• Capacity stage 2: 20 Tonne (20,000kg)
• Capacity stage 3: 10 Tonne (10,000kg)
• Minimum height: 125mm
• Maximum height stage 1: 302mm (inc extensions)
• Maximum height stage 2: 347mm (inc extensions)
• Maximum height stage 3: 396mm (inc extensions)
• Lift height stage 1: 57mm
• Lift height stage 2: 45mm
• Lift height stage 2: 49mm
• Operating air pressure: 9 - 12BAR (130 - 174psi)
• Air consumption: 11.5cfm
• Air inlet: 1/4" BSP
• Wheel diameter: 125mm
• Wheel width: 47.5mm
• Saddle diameter: 70mm
• Extensions: 45mm and 75mm
• Handle length: 1380mm
• Chassis size: 830 x 179 x 125mm
• Nett weight: 44kg
• Manufactured to EN1494 Specification
