Draper Expert Semi Automatic Tyre Changer - 81645

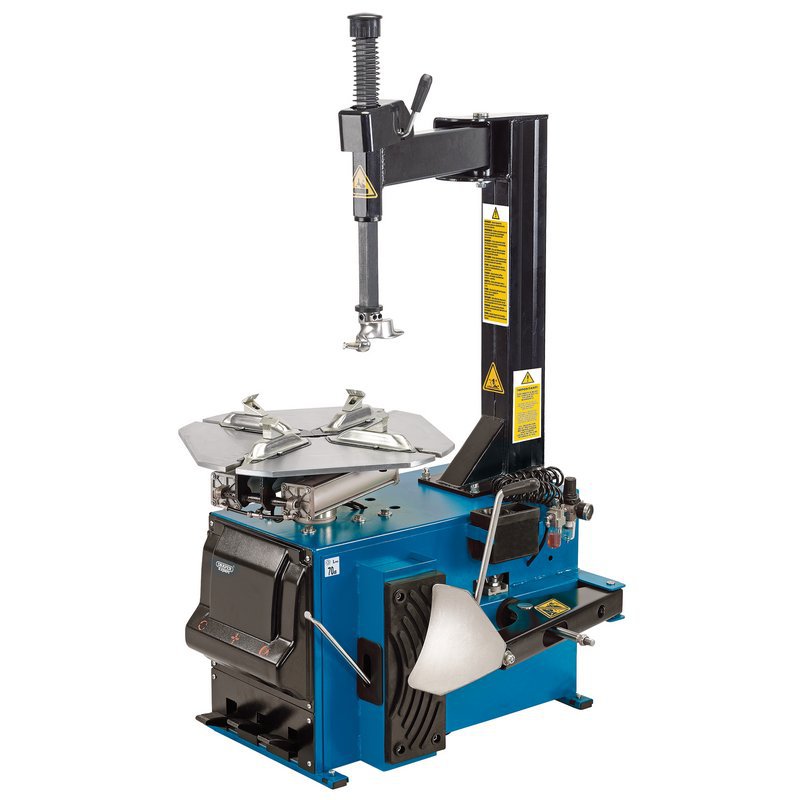

Draper Expert Semi Automatic Tyre Changer

ref: 81645 / TC100

• Semi automatic tyre changer, capable of removing and replacing tyres on wheels up to 23".
• The fully motorised turntable, pneumatically operated clamping jaws and powerful pneumatic bead breaker enables the changing of conventional tyres quickly and easily.
• The self centring four-jaw chuck, controlled by two clamping cylinders, always ensures wheel rims are correctly clamped.
• Alloy rims are treated particularly gently as the mounting head is provided with plastic protectors.
• The bead breaker is attached with a large anti-skid rubber pad, which preserves the tyres and rims.
• The machine is operated by a standard 13amp 3 pin plug and the mounting arm swings to the side, allowing the machine to be installed directly near a wall, perfect for those with limited working space.
• Supplied with the following accessories: tyre lever, filter regulator lubricator to connect your compressed air supply, alloy rim protectors, head tongue protectors and inflation gun and air hose.

• Motor: 1.1kW
• Power supply: 230V
• Bead breaker force: 2100kg
• Pneumatic supply: 90-115psi (6-8BAR)
• Suitable for use on wheel width: 3" to 14"
• For rim dia. (internal locking): 13" to 23"
• For rim dia. (external locking): 11" to 21"
• Max tyre outside diameter: 40" (1000mm)
• Dimensions: 1740mm x 950mm x 760mm
• Weight: 180kg

Speak to us about installation.
