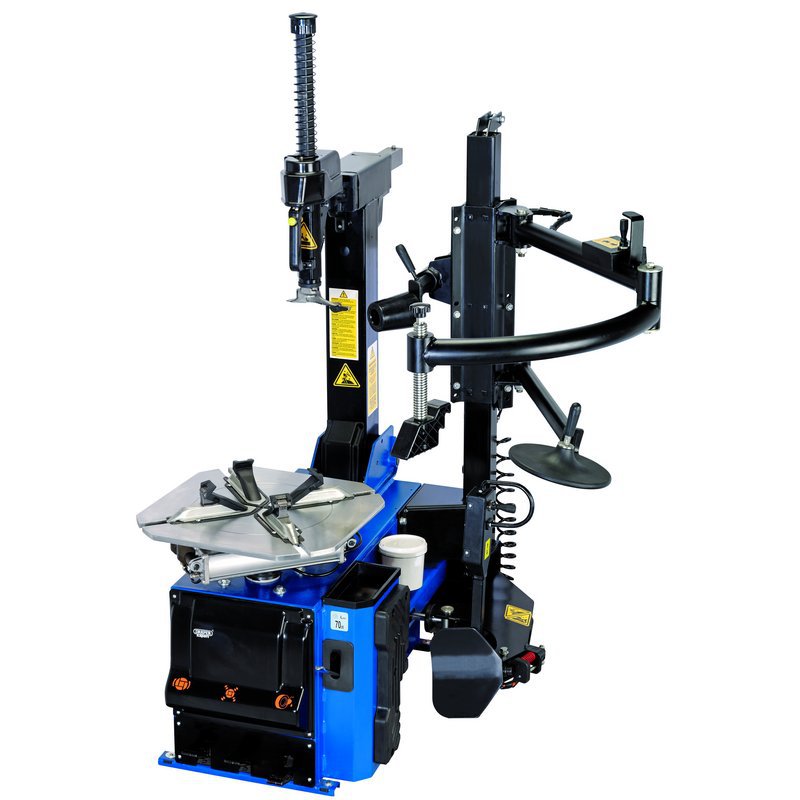

Draper Expert Semi Automatic Tyre Changer with Assist Arm - 78612

Draper Expert Semi Automatic Tyre Changer with Assist Arm

ref: 78612 / TC200

• Semi-automatic tyre changer, capable of removing and replacing tyres on wheels up to 26".
• Fitted with an assist arm (also known as a third arm) to aid the user when changing low profile and run flat tyres.
• The fully motorised turntable, pneumatically operated clamping jaws, powerful pneumatic bead breaker and tilt column enables the changing of low profile and run flat tyres quickly and easily.
• The self-centering four-jaw chuck, controlled by two clamping cylinders, always ensures wheel rims are correctly clamped.
• Alloy rims are treated particularly gently as the mounting head is provided with plastic protectors.
• The bead breaker is attached with a large anti-skid rubber pad, which preserves the tyres and rims.
• The machine is operated from a standard 13amp 3 pin plug.
• Supplied with the following accessories: tyre lever, filter regulator lubricator to connect your compressed air supply, alloy rim protectors, head tongue protectors and inflation gun and air hose.

• Motor: 1.1KW
• Power supply: 230V
• Bead breaker force: 2100kg
• Pneumatic supply: 90 - 115psi (6-8BAR)
• Suitable for use on wheel width: 3" to 18"
• For rim dia. (internal locking): 13" to 26"
• For rim dia. (external locking): 12" to 25"
• Max wheel diameter: 45"
• Dimensions: 1900 x 1950 x 1650mm
• Weight: 350kg

Speak to us about installation.
