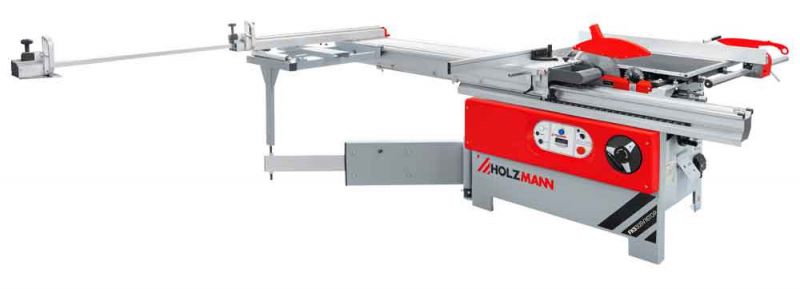

Holzmann FKS305V16TOP 305mm Panel Saw with Sliding Table and Extension Arm 415v
Product Code: HOL/FKS305V16TOP
Brand: Holzmann
£4,679.99 Inc. VAT
£3,899.99 Exc. VAT
Holzmann FKS305V16TOP
305mm Panel Saw with Sliding Table and Extension Arm 415v

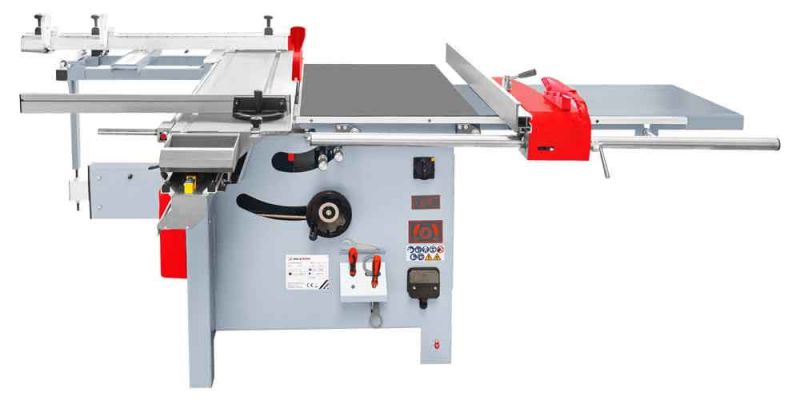

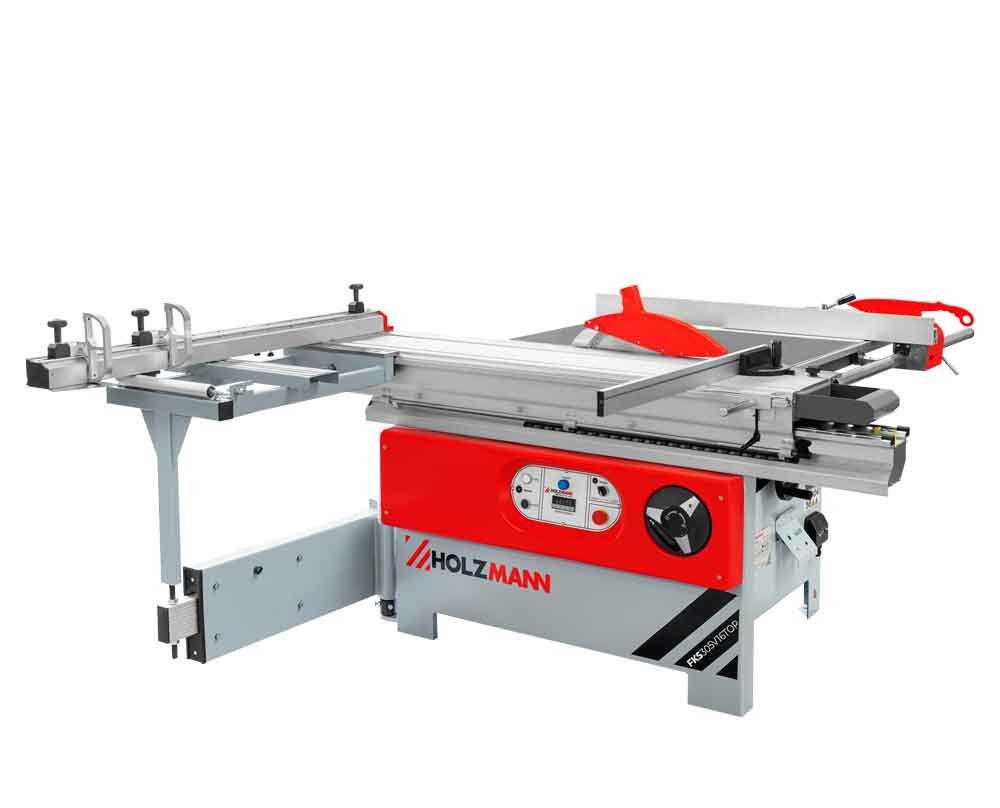

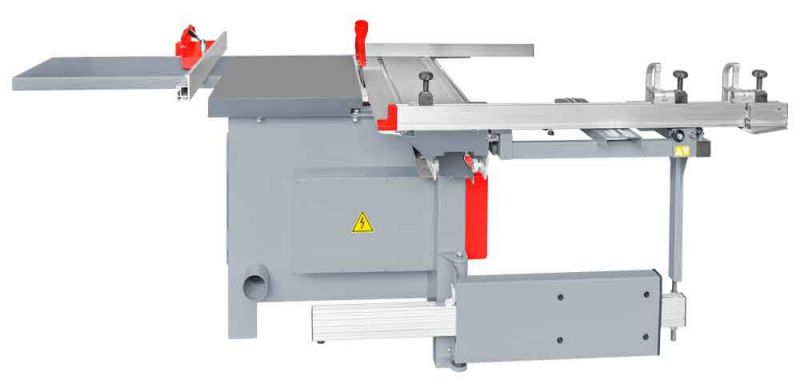

The HOLZMANN panel saw FKS305V16TOP with 1.6 m sliding table, scoring unit (height and side adjustable), table extension, main saw blade with height and angle adjustment, outrigger table for precise cuts in a compact format.
Key Features
- solid design.
- with precise aluminium sliding table and extension arm ideal for processing workpieces and cutting panels to size
- Cast iron work table (935 x 610 mm) incl. table widening (900 x 500 mm) and table extension (600 x 520 mm) of solid steel construction

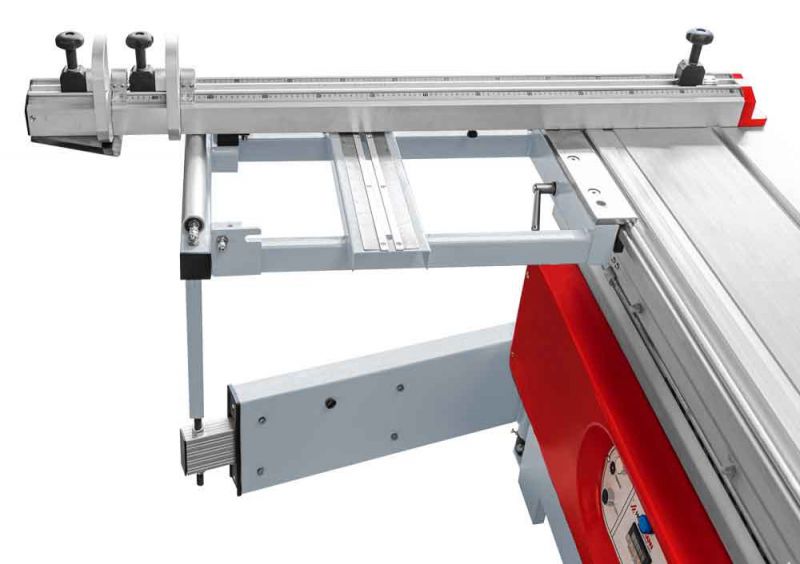

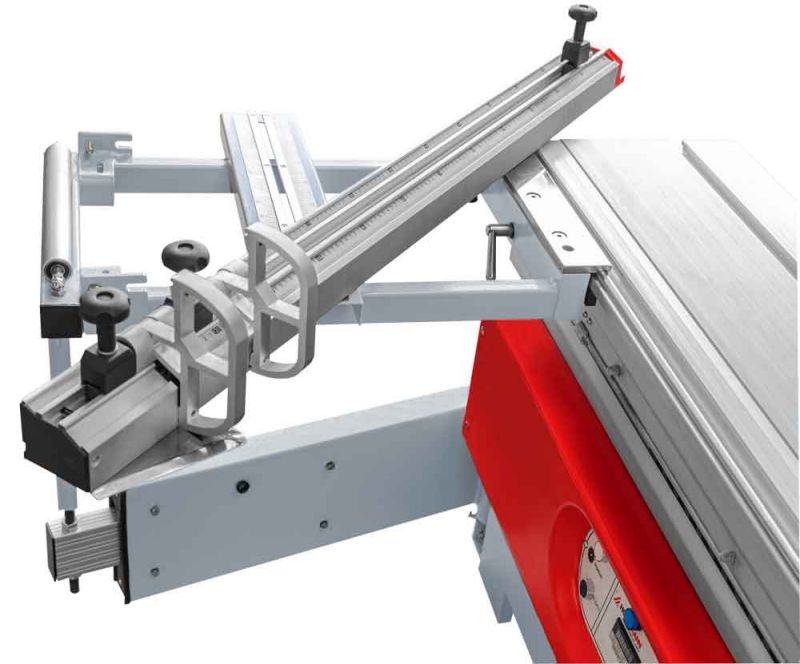

- outrigger table 900 x 500 mm + cross cut fence 1200 – 2280 mm
- including scorer with own motor and manual height and side adjustment
- manually tiltable saw blade 0°-45° (via angle indicator)
- manual height adjustment of the main saw blade and scorer

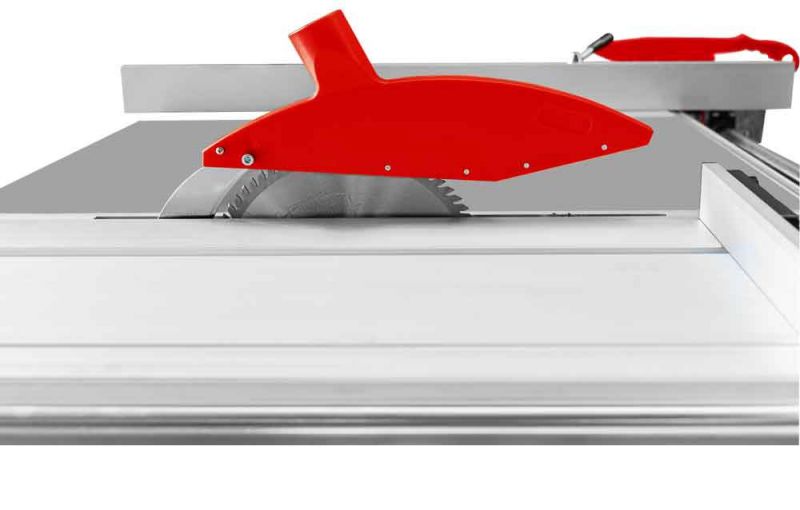

- includes main saw blade (TCT: Ø300 x 30 x 3,2 mm T(72)) and scoring saw blade (Ø120 x 20 x 3-3,8 T=24)
Technical details
motor data
- motor power s1 in W 5500
- voltage 400 V / 50 Hz
measurements
- table height in mm 890
- sliding table in mm 1600 x 370
- outrigger table in mm 900 x 500
- dust collector port in mm Ø100 / (Ø50)
- total dimensions in mm 3100 x 1800 x 890
cutting performance
- max. cutting width at parallel fence in mm 1250
circular saws
- sawblade in mm 250-315 (/30)
- sawblade speed in min-1 (I): 4000 (II): 6000
- scoring sawblade in mm Ø120 x 20
- scoring unit motor power in W 750
- scoring unit speed in min-1 8000
- sawblade swivel 0-45°
volume level and vibration
- sound power level in dB(A) 90
- sound pressure level in dB(A) 88,2
weight
- gross weight in kg 570
- net weight in kg 490
