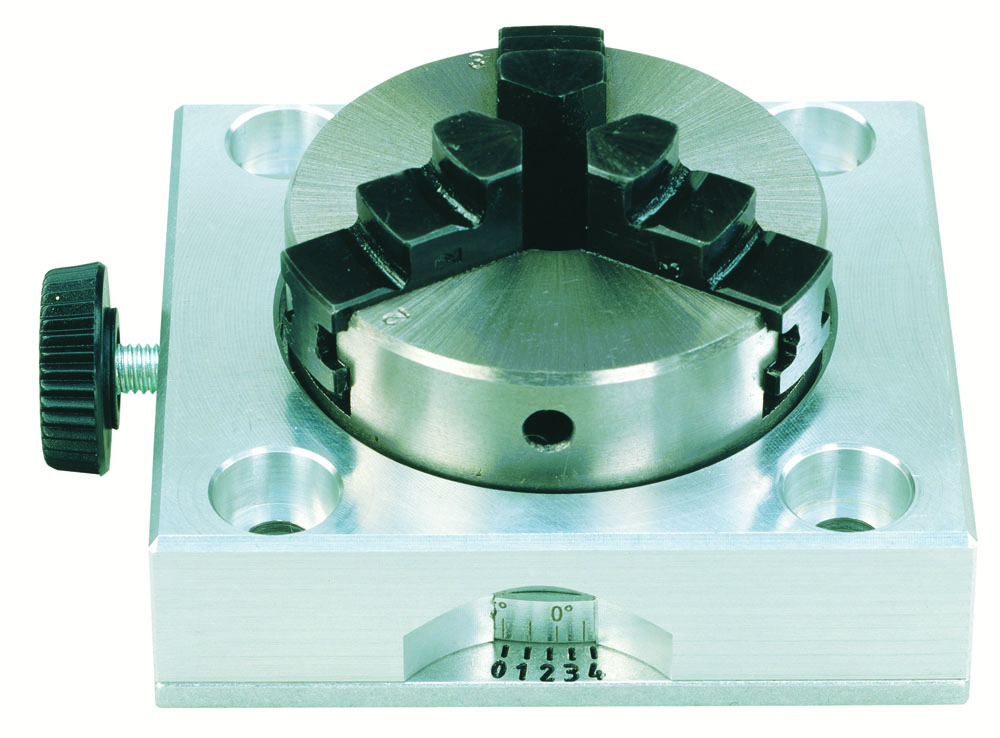

PROXXON 24264 DIVIDING HEAD FOR KT70 & TBM220
Product Code: PRX/24264
Brand: Proxxon
£108.00 Inc. VAT
£90.00 Exc. VAT
Proxxon Dividing Head for MF70 & TBM220
This Dividing Head can be used to drill off-set holes and to mill off-set slots, rectangles, hex shapes, etc. A scale on the housing enables high accuracy divisions. It includes a chuck with reversible jaws, which is able to clamp 1.5-32mm internally and 12-65mm externally. The 11mm bore allows the passage of longer workpieces when it is used in the horizontal position. It features fixing holes for horizontal & vertical assembly. Suitable for use with theProxxon MICRO Miller MF 70 and Compound Table KT 70. Size 72 x 64 x 38mm, supplied in wooden box with sliding lid.
Used to drill off-set holes and to mill off-set slots, rectangles, hex shapes, etc.
Scale on the housing enables high accuracy divisions
Chuck with reversible jaws
Clamps 1.5-32mm internal and 12-65mm external
11 mm bore allows the passage of longer work pieces when used in the horizontal position
Fixng holes for horizontal and vertical assembly
Suitable sliding blocks and fixation screws for assembly to MICRO Miller MF 70 & Compound Table KT 70
Supplied in wooden box with sliding lid
This Dividing Head can be used to drill off-set holes and to mill off-set slots, rectangles, hex shapes, etc. A scale on the housing enables high accuracy divisions. It includes a chuck with reversible jaws, which is able to clamp 1.5-32mm internally and 12-65mm externally. The 11mm bore allows the passage of longer workpieces when it is used in the horizontal position. It features fixing holes for horizontal & vertical assembly. Suitable for use with theProxxon MICRO Miller MF 70 and Compound Table KT 70. Size 72 x 64 x 38mm, supplied in wooden box with sliding lid.
