Pramac ES8000 Portable Petrol Generator 230V 7.2kva - ES8000-230

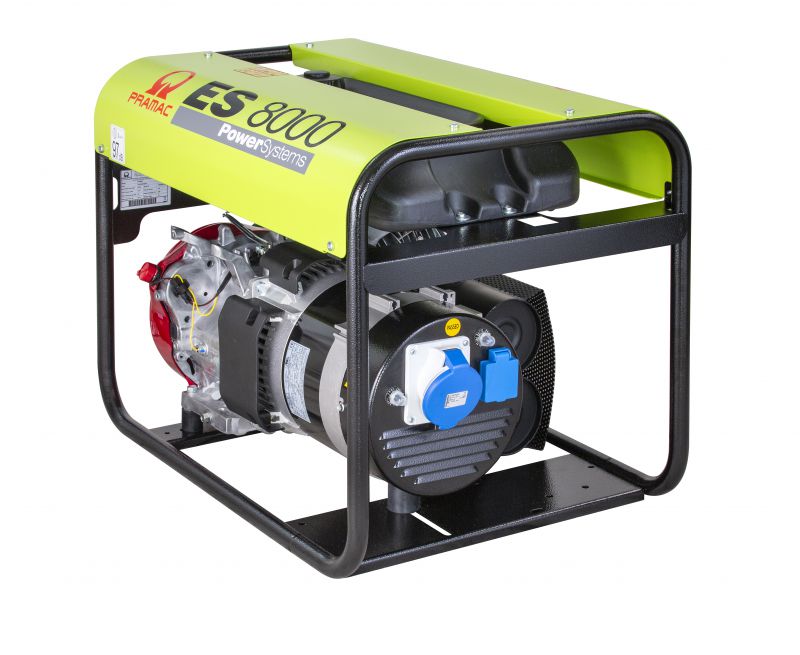

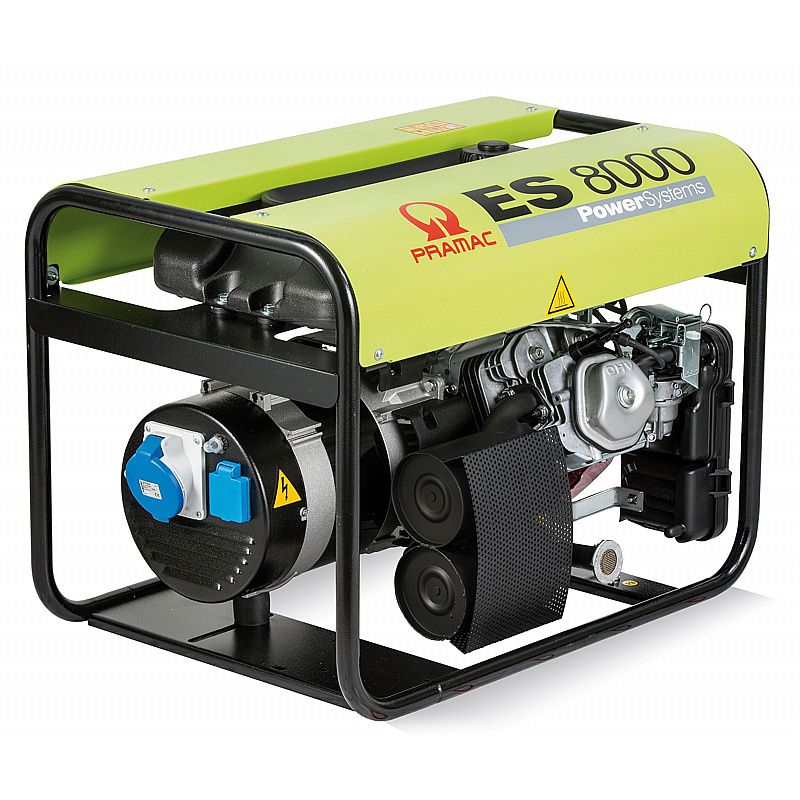

Pramac ES8000 Portable Petrol Generator 230V 7.2kva

ref: ES8000-230 / PE612SH1009

• Pramac ES8000: This design is for those who need a powerful generator. It is easy to use and carry for professional activities.

This generator has a basic configuration and provides a long lasting professional power supply. It is a light generator with a generous fuel tank. Includes:

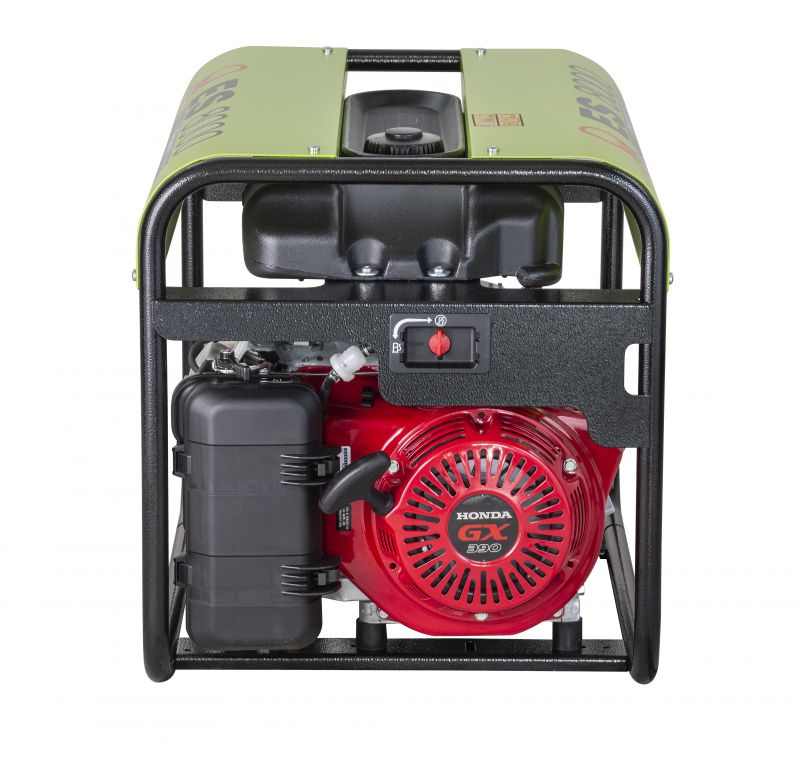

• Professional GX Honda engine.
• Recoil starting system.
• Super silent muffler.
• Long running fuel tank.

Control Panel:

• Selector switch OFF – ON to start the engine
• Fuel tap for easy storage
• Choke lever
• Protections: thermal protection, oil guard

Sockets:

• 1 x SCHUKO 230V 16A IP54
• 1 x CEE 230V 32A IP44

Main Features

• Frequency Hz: 50
• Voltage V: 230
• Power factor cos ϕ: 0.9
• Phase: 1

Power Rating *

• Emergency Standby Power ESP kVA: 7.2
• Emergency Standby Power ESP kW: 6.4
• Continuous power COP kVA :6.0
• Continuous power COP kW: 5.5

Engine specifications

• Engine Brand: Honda
• Model: GX390 Recoil
• Engine cooling system: Air
• Displacement cm³: 389
• Aspiration: Natural
• Operating Speed-Nominal rpm: 3000
• Speed governor: Mechanical
• Fuel: Petrol
• Oil capacity l: 1.1
• Starting system: Recoil

Alternator Specifications

• Brushes
• Class: H
• IP protection: 23
• Poles: 2
• Frequency Hz: 50
• Voltage regulation system: Electronic
• Standard AVR: AVR 520

Dimensional data

• Length (L) mm: 729
• Width (W) mm: 500
• Height (H) mm: 536
• Dry weight kg: 73
• Fuel tank capacity l: 11

Autonomy

• Fuel consumption at 75% of Load l/h: 2.16
• Fuel consumption at 100% of Load l/h: 2.87
• Running time at 75% of load h: 5.09
• Running time at 100% of load h: 3.83

Noise level

• Guaranteed noise level (LWA) dB(A): 97
• Noise pressure level @ 7 m dB(A): 69

* Ratings definition (ISO-8528)

• ESP - Emergency Standby Power: It is the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. The permissible average power output over 24 h of operation shall not exceed 70 % of the ESP.
• COP - Continuos Power: It is defined as being the maximum power which a generating set is capable of delivering continuously for an unlimited number of hours, with the maintenance intervals and procedure being carried out as prescribed by the manufacturers.

Pramac ES8000 (230v) Spec Sheet
