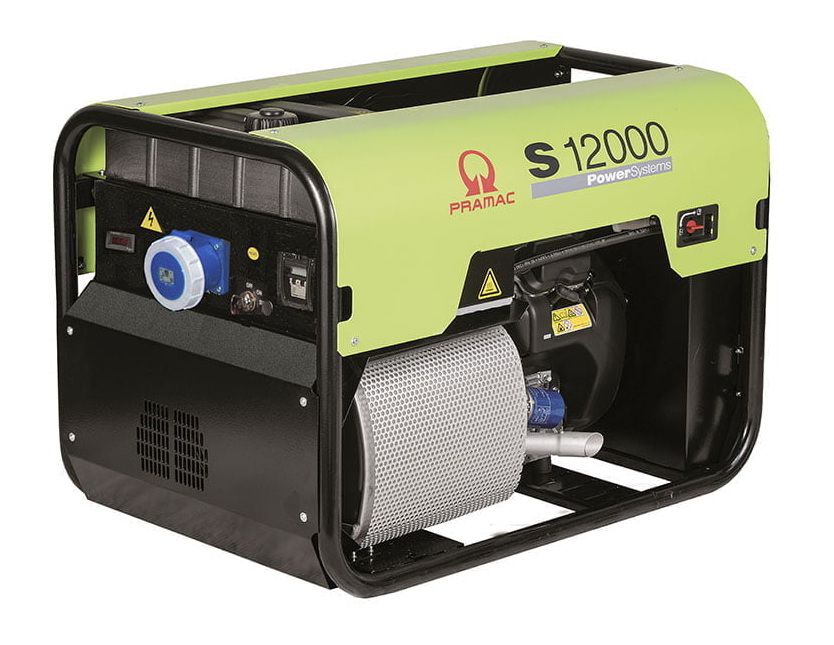

Pramac S12000 Portable Petrol Generator 230V 11.9kva - S12000-230/115

Pramac S12000 Portable Petrol Generator 230V 11.9kva

ref: S12000-230/115 / PD103SH200U

• Pramac S12000 has been designed for an intensive and professional use. As your perfect partner for work, this powerful generator is robust and easy to carry.
• Your perfect partner! This high quality and powerful portable generator is built to provide constant power for your professional activities.

Control Panel:

• Selector switch with key: OFF – ON - START
• CONNector for AMF/RSS (AMF/RSS Accessory available not included)

Instrumentation:

• Voltmeter
• Hours-meter
• Frequency Meter

Sockets:

• 1 x CEE 230V 63A

Main Features

• Frequency Hz: 50
• Voltage V: 230
• Power factor cos ϕ: 0.9
• Phase: 1

Power Rating *

• Emergency Standby Power ESP kVA: 11.9
• Emergency Standby Power ESP kW: 10.7
• Continuous power COP kVA :10.0
• Continuous power COP kW: 9.1

Engine specifications

• Engine Brand: Honda
• Model: GX630
• Engine cooling system: Air
• Displacement cm³: 688
• Aspiration: Natural
• Operating Speed-Nominal rpm: 3000
• Speed governor: Mechanical
• Fuel: Petrol
• Oil capacity l: 1.9
• Starting system: Electric

Alternator Specifications

• Brushes
• Class: H
• IP protection: 23
• Poles: 2
• Frequency Hz: 50
• Voltage regulation system: AVR
• Standard AVR: ASR

Dimensional data

• Length (L) mm: 960
• Width (W) mm: 641
• Height (H) mm: 667
• Dry weight kg: 162
• Fuel tank capacity l: 24

Autonomy

• Fuel consumption at 75% of Load l/h: 4.07
• Fuel consumption at 100% of Load l/h: 5.43
• Running time at 75% of load h: 5.90
• Running time at 100% of load h: 4.42

Noise level

• Guaranteed noise level (LWA) dB(A): 96
• Noise pressure level @ 7 m dB(A): 68

* Ratings definition (ISO-8528)

• ESP - Emergency Standby Power: It is the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. The permissible average power output over 24 h of operation shall not exceed 70 % of the ESP.
• COP - Continuos Power: It is defined as being the maximum power which a generating set is capable of delivering continuously for an unlimited number of hours, with the maintenance intervals and procedure being carried out as prescribed by the manufacturers.

Pramac S12000 (230v) Spec Sheet
