Proxxon Cut Off / Mitre Saw KGS 80 230v

Proxxon Cut Off / Mitre Saw KGS 80 230v

ref: 27160

• Ideal for mitre cuts: Adjustments are made to the round table (with clamped work piece) and not to the headstock.
• The lower part of the motor unit and the baseplate is made of sturdy die-cast aluminium with CNC milled guides.
• The baseplate is surface milled and fitted with an integral vice to ensure work pieces are held firmly and securely for maximum cutting accuracy.
• The vice cheeks are provided with V-groove (for round parts) and with groove for clamping thin workpieces up to 65 mm wide.

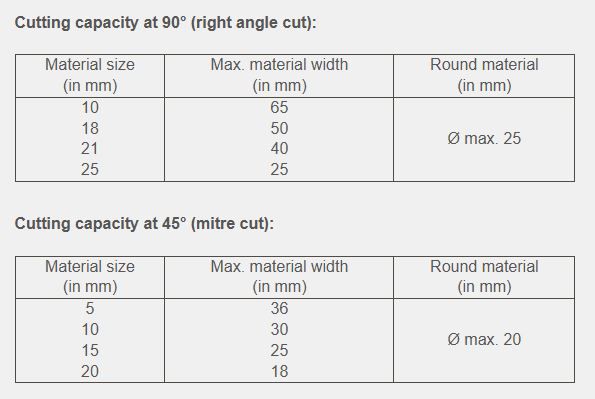

• The compact, tight and torsion-free design allows clean and safe cutting of workpieces up to 65mm wide and 25mm thick as well as round material up to a maximum. diameter of 25mm.
• The baseplate rotates through 45° left and right and is notched 15° steps, the base can also be locked for intermediate angles.
• Fence adjustable to 300mm.
• Supplied with a tungsten-tipped saw blade for non-ferrous metal, wood and plastics (80 x 1.6 x 10mm, 36 TPI).
• Integrated clamping fixture.

• 230V. 200W. 50/60Hz. 6,000rpm.
• Base with round table of highly stable die-cast aluminium with CNC-milled fittings and slides.
• Table 230 x 230mm. Weight 6kg.
