Proxxon Mill / Drill System BFW 40/E with Controller 230v

Proxxon Mill / Drill System BFW 40/E with Controller 230v

ref: 20165

• With controller for speeds of 900 - 6,000rpm.
• The triple ball bearing armature provides direct drive (no gearing). This yields virtually vibration-free operation and extremely high spindle accuracy.
• Aluminium die-cast head with spindle neck of 43mm (European standard).
• Remainder of casing is fibreglass reinforced nylon.
• Large, easy to use switch with emergency function.
• Chart indicates optimum speeds for milling and drilling of various materials.
• Complete with collets covering 2.35, 3.0, 3.2, 4.0, 5.0 & 6.0mm

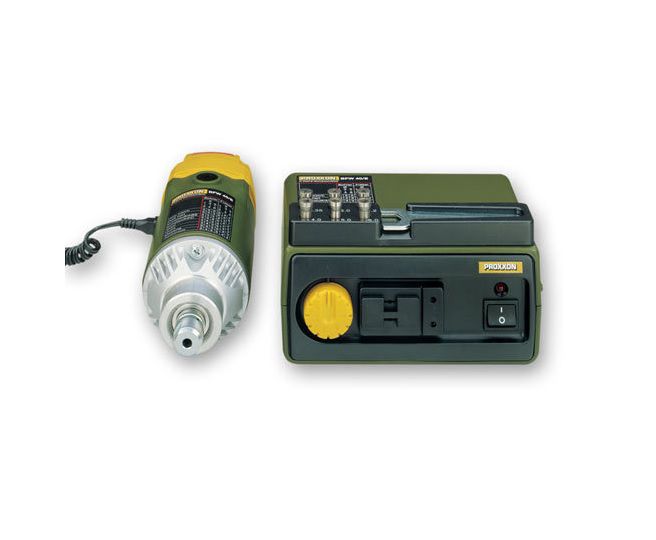

• Control unit with full wave electronics for 230V, 40VDC secondary voltage.
• Power consumption up to max. 250W.
• Spindle speed infinitely variable between 900 and 6,000rpm.
• Complete with triple slit, hardened collets covering 2.35, 3.0, 3.2, 4.0, 5.0 and 6.0mm, as well as spanners.
• Weight 4.2kg.
• N.B. The motor operates at 40V, supplied from the power pack/controller. At this level, the control characteristics are ideal and yield high torque, even at lower speeds.
• Note: The BFW 40/E is shown in images as a tool combination with the mill/drill unit BFB 2000 and compound table KT 150. Neither tool is included.
